Harland & Wolff (Methil) is situated on the north bank of the 9 mile wide Firth of Forth estuary, a deep water estuary on the east coast of Scotland, with unrestricted access to open sea.

The site features two load out quays with 20,000 tonnes capacity each across an open construction area of 69,000m² and 17,000m².

The Methil yard covers an area of 542,258 m², with 283,400m² of covered and open assembly areas, 7,500m² of covered fabrication area and 6,800m² of covered storage area.

Our dockyard

Please click on each of the numbered positions to find out more.

1

MAIN OFFICES

  • Fully equipped client, project and administration office facilities
2

FABRICATION SHOP 1

  • Mainly used for the preparation of steel plates, tubulars and sections and for prefabrication work
  • Size: 26m (w) x 122m (l)
  • Door opening: 20m (w) x 9m (h)
  • 2 x 30t Goliath cranes
  • 2 x 10t Goliath cranes
3

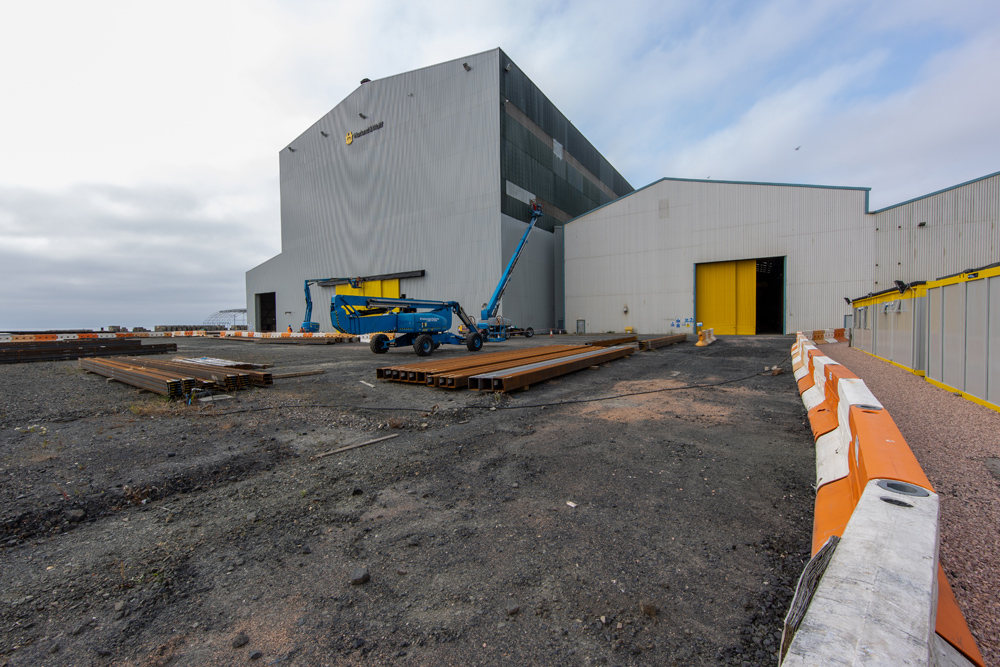

FABRICATION SHOP 2

  • Mainly used for sub-assembly of deck sections, PAV’s and node fabrication
  • Size: 26m (w) x 134m (l)
  • Door opening: 24m (w)x 12m (h)
  • 2 x 60t Anderson Grice overhead travelling crane: 26m span x 12m hoisting height
  • 2 x 20t overhead crane: 6m span x 12m hoisting height
4

FABRICATION SHOP 3 (MAIN ASSEMBLY HALL)

  • Mainly used for the final erection and fitting out of jackets modules and integrated decks. It is one of the largest final assembly halls in Europe
  • Size: 48m (w) x 134m (l) x 30m (h)
  • Door opening: 47m (w) x 29m (h)
  • 2 x 40t Carruthers overhead travelling cranes: 48m span x 30m hoisting height
  • 2 x auxiliary hoists
5

MAIN PAINT SHOP

  • Fully equipped to shot blast and paint to standard offshore paint systems and thermal spray aluminium systems
  • Temperature controlled with ventilation and dust extraction systems
  • Size: 30m (w) x 55m (l)
  • Door opening: 28m (w) x 10m (h)
6

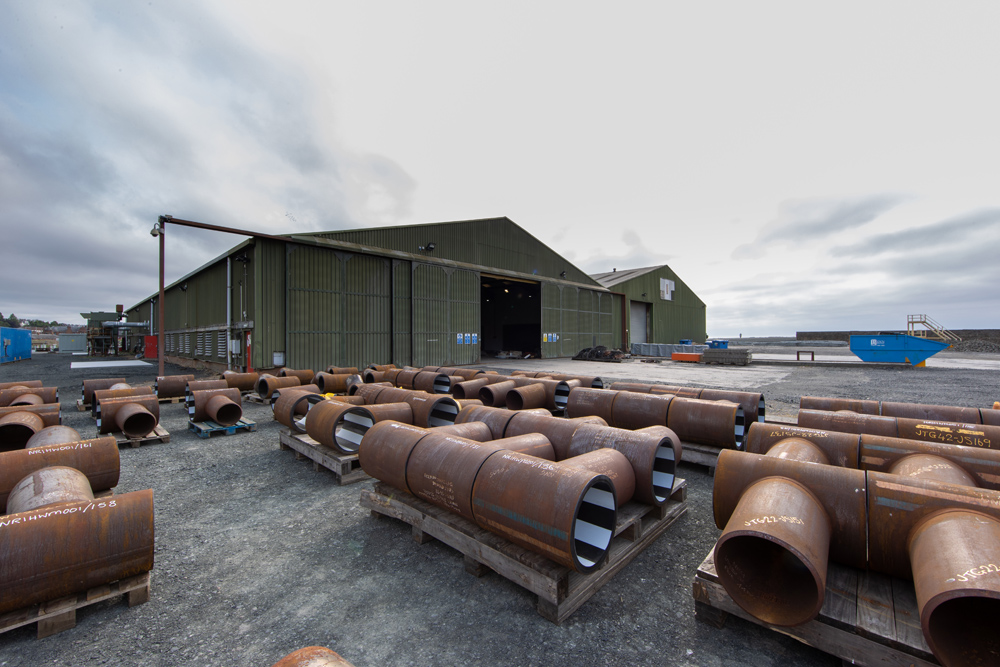

SHOP 4 (SECONDARY PAINT SHOP)

  • Size: 30m (w) x 60m (l)
  • Door opening: 28m (w) x 5.7m (h)
7

MAIN STORES

  • Central store: 1,600m²
  • Client equipment parts stores: 1 x permanent portal frame building, 30m (w) x 60m (l)
8

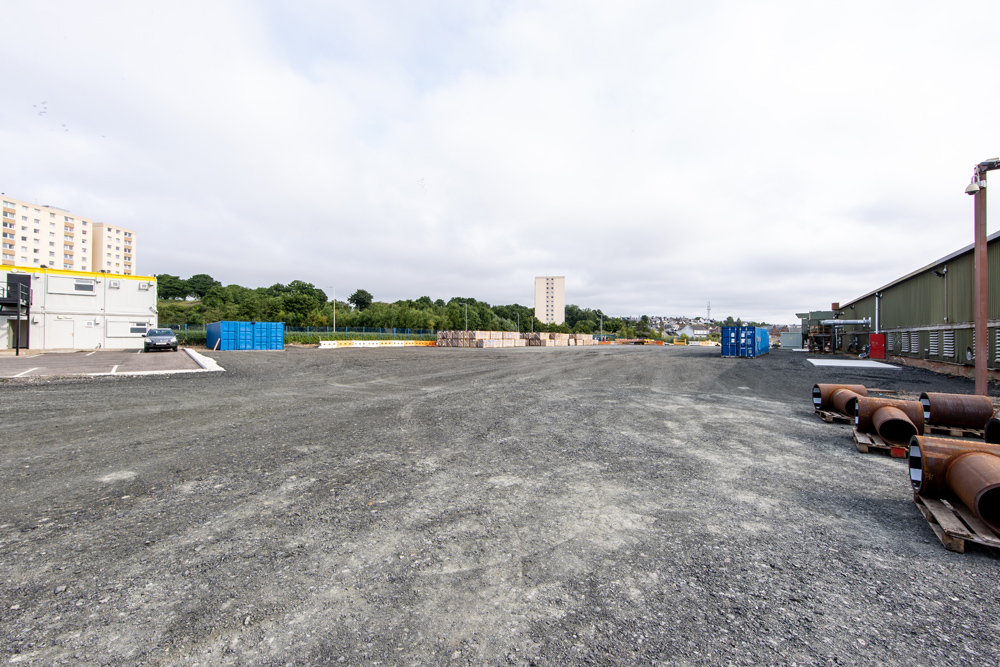

MATERIAL STORAGE AREA

  • Steel stockyard: 17,000m²
  • Material stockyard: 18,600m²
9

EXTERNAL CONSTRUCTION SITE

A. QUAYSIDE AREA – ACCESS TO:

  • Open construction area of 69,000m²
  • Concrete to load out and fabrication / assembly space
  • Even surface of consolidated colliery shale with a load bearing capacity of 30 te/m²
  • 24 -hour operation with floodlighting and with mains electricity distribution points throughout

B. QUAYSIDE AREA 2

  • Open construction area of 186,000m²

C. PRE FABRICATION FACILITY AREA 3

  • Open construction area of 17,000m²
10

QUAYSIDE

  • Quay 2 (and access to Quay 1) with frontage, min. water depth and capacity
  • The load out quay can accommodate modular hydraulic tyred trailer units for load outs in excess of 22,000 tonnes
